Sol-Ark 15K 120/240/208V 48V [All-In-One] Pre-Wired Hybrid Solar Inverter | 10 Year Warranty

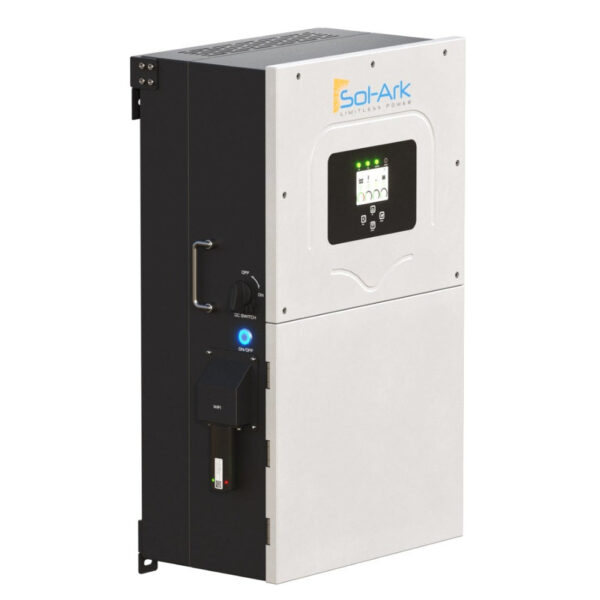

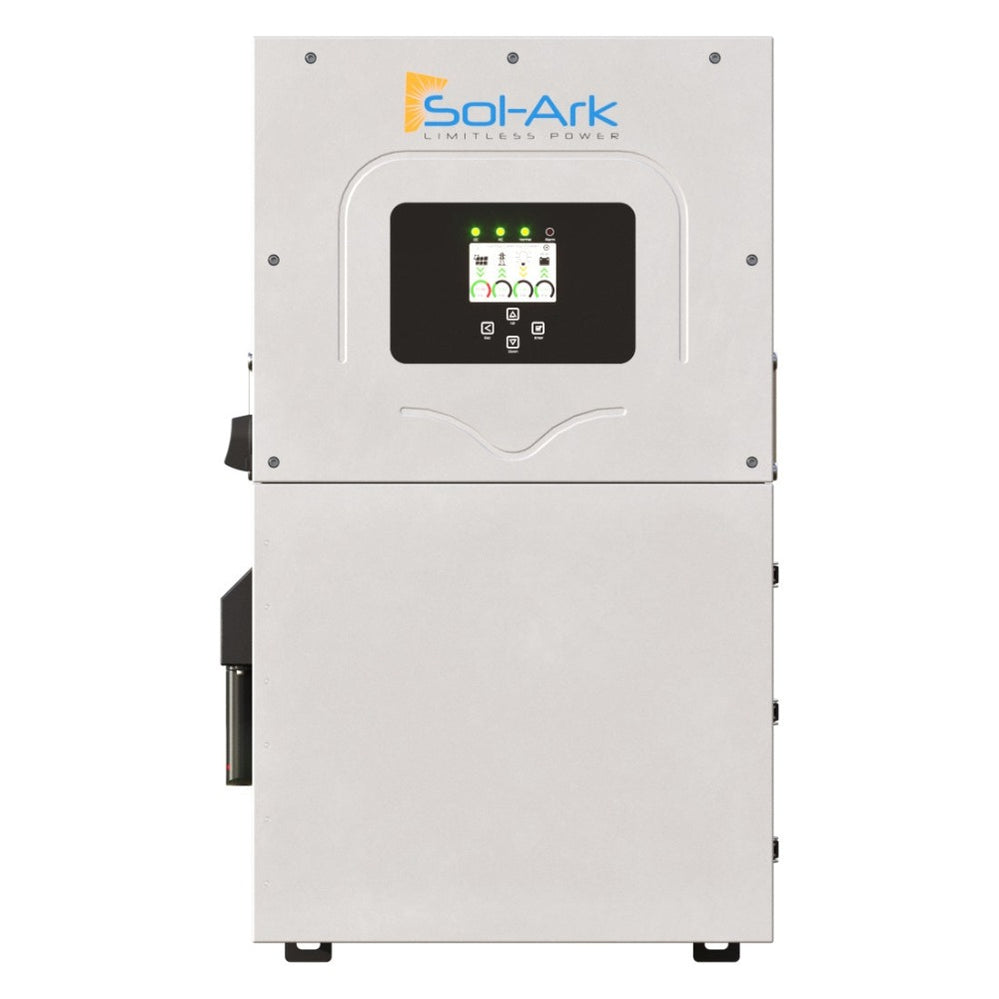

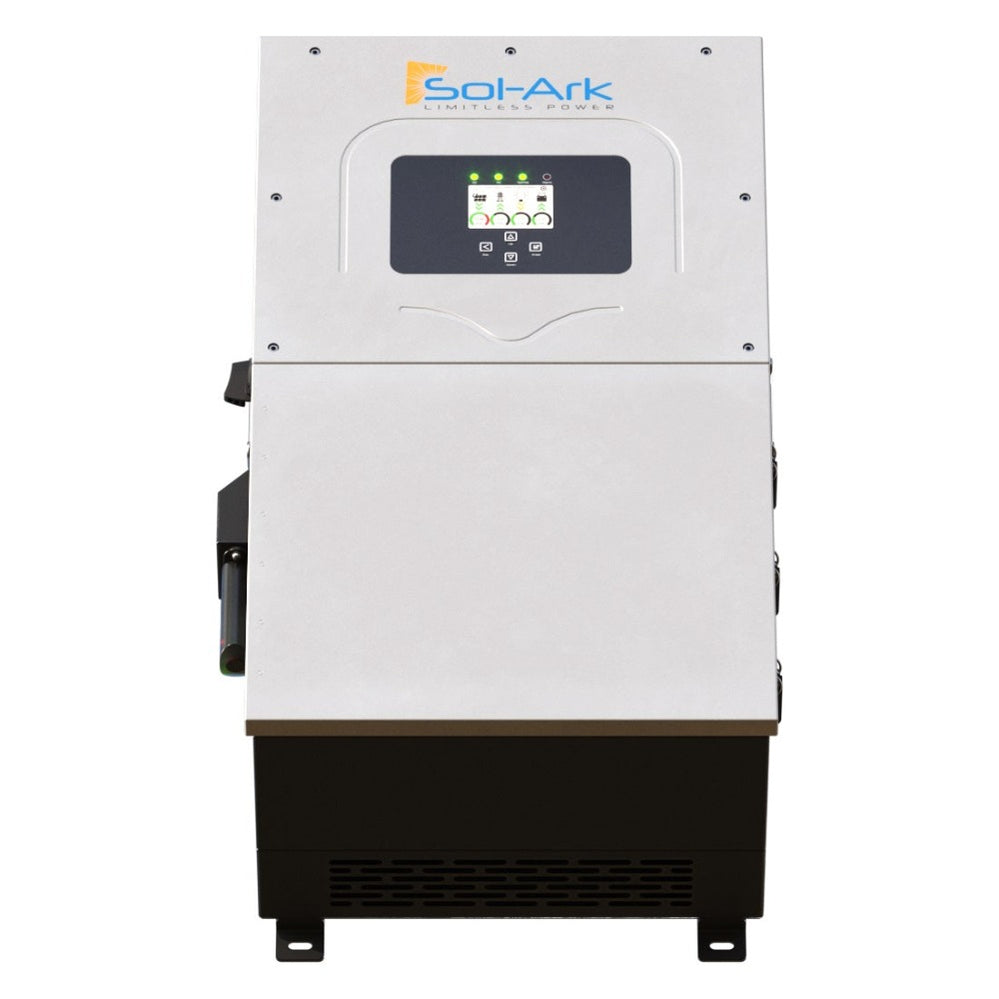

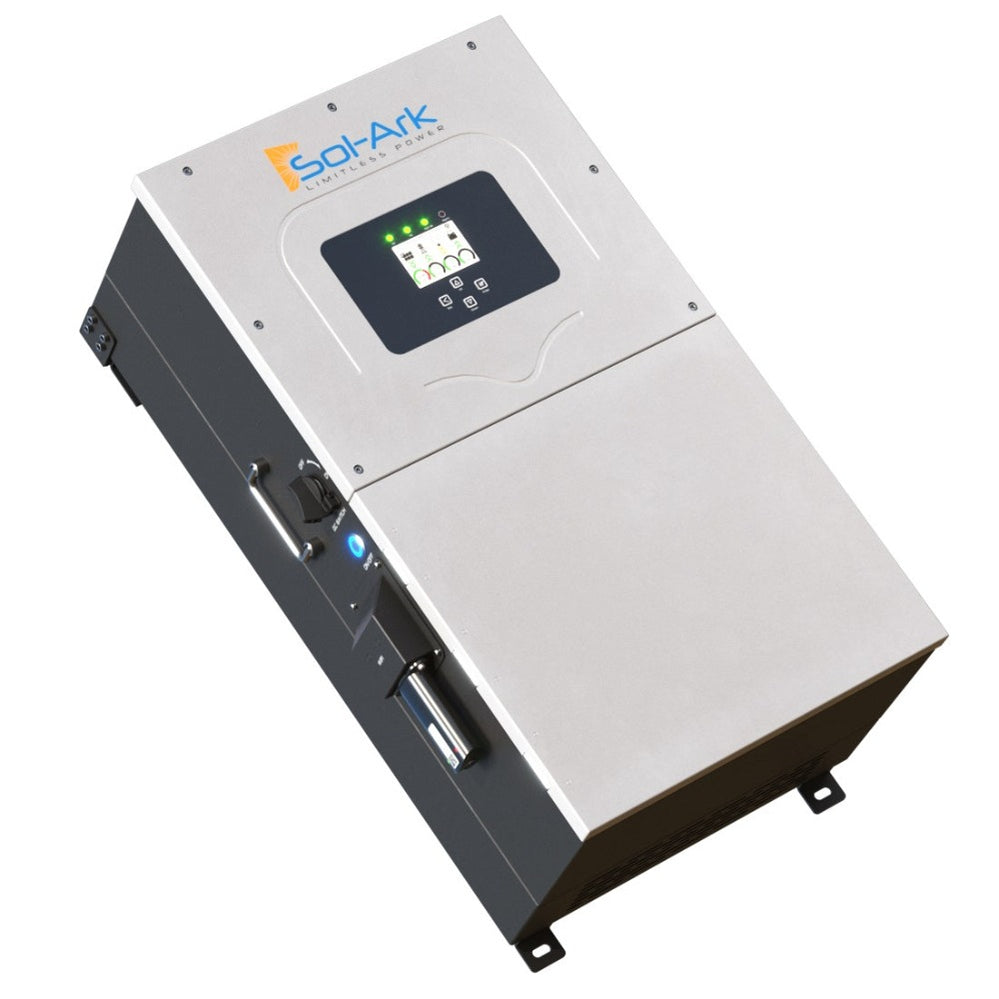

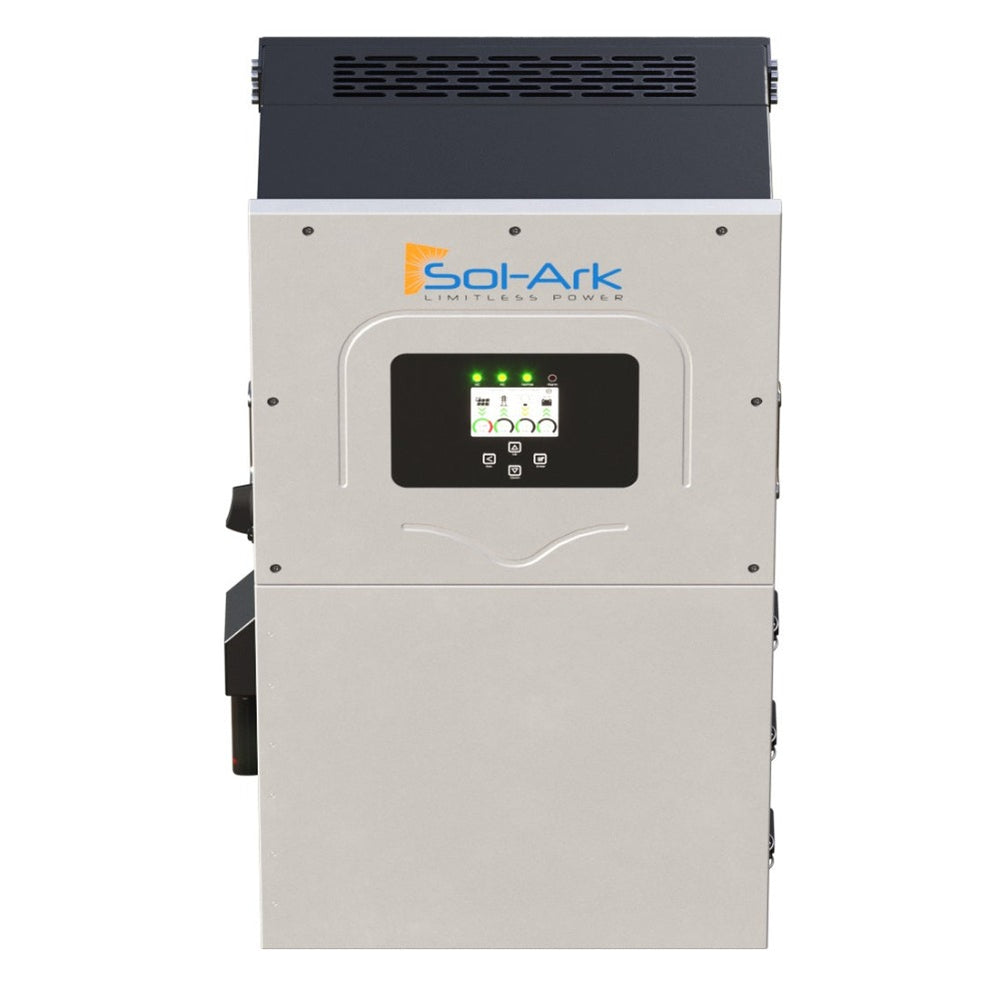

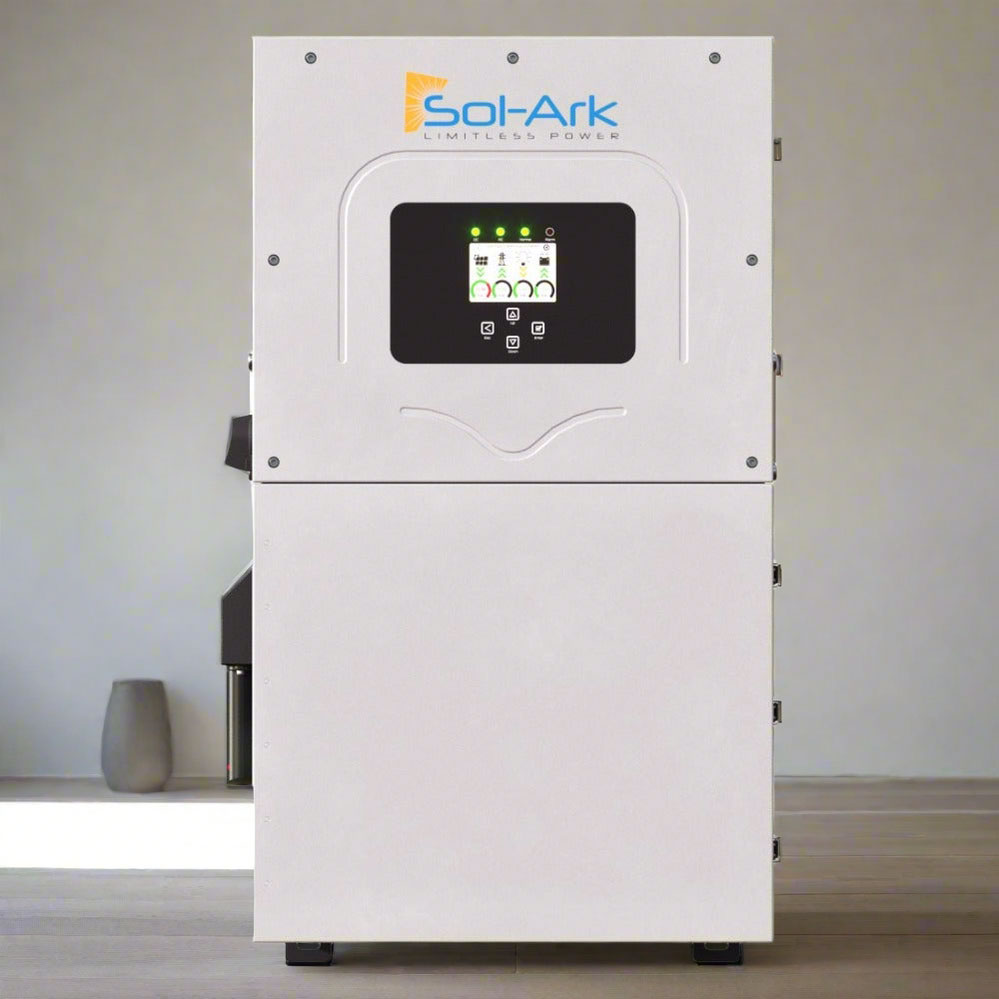

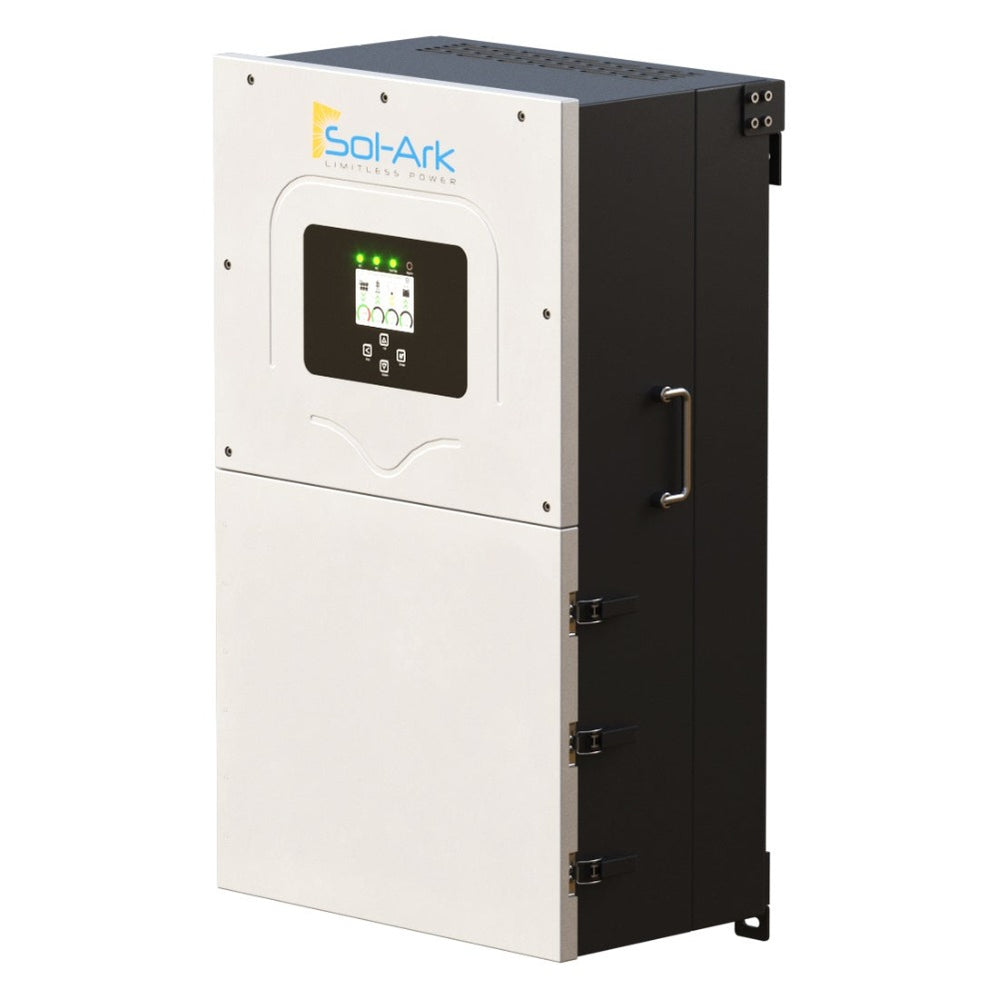

SOL-ARK 15K-2P Hybrid Inverter Overview

This pre-wired system integrates the inverter, charge controller, and other components into a single package, eliminating the need for fuses, breakers, or combiner boxes. As a result, installation is straightforward and affordable with minimal additional equipment required.

With its enhanced capabilities, this all-in-one pre-wired inverter system is highly efficient and cost-effective, outperforming other inverters in its class by a significant margin.

SOL-ARK 15K-2P Hybrid Inverter Features & Benefits

Easy Install

The Sol-Ark INVERTER comes with everything you need to install it. Nicely packaged for added efficiency.

Fleet Management

With Sol-Ark’s remote access features and app you are never out of touch to quickly repair or adjust any system without being on site.

Battery Agnostic

Sol-Ark inverters also do not have expensive battery restrictions like other solar inverters do, and can be used with a wide variety of 48V battery chemistries, from lead to lithium.

SOL-ARK 15K-2P Hybrid Inverter Specifications

Input Data (PV)

• Max. Allowed PV Power (STC): 19,500W
• Rated MPPT Operating Voltage Range: 175 – 425V
• MPPT Voltage Range: 150 – 500V
• Startup Voltage: 125V
• Max. Input Voltage: 500V
• Max. Operating Input Current per MPPT: 26A
• Max. Short Circuit Current per MPPT: 44A
• No. of MPP Trackers: 3
• No. of PV Strings per MPPT: 2
• Max. AC Coupled Input: 19,200W

Output Data (AC)

• Nominal AC Voltage: 120/240V, 120/208V, 220V
• Grid Frequency: 50 / 60Hz
• Real Power, max continuous: 15,000W
• Max. Output Current: 62.5A
• Real Power, max continuous (batteries only, no PV): 12,000W (50A @ 240V)
• Peak Apparent Power (10s, off-grid): 24,000VA @ 240V
• Peak Apparent Power (100ms, off-grid): 30,000VA @ 240V
• Max Output Fault Current (5s): 94A with PV, 75A (batteries only)
• Max Output Fault Current (100ms): 120A
• Max. Grid Passthrough Current: 200A
• Power Factor Output Range: +/- 0.9 adjustable
• Backup Transfer Time: 5ms
• CEC Efficiency: 96.5%
• Max Efficiency: 97.5%
• Design (DC to AC): Transformerless DC
• Stackable: Up to 12 in parallel

Battery Input Data (DC)

• Battery Technologies: Lithium / Lead Acid
• Nominal DC Voltage: 48V
• Operating Voltage Range: 43 – 63V
• Capacity: 50 — 9900Ah
• Max. Battery Charge / Discharge Current: 275A
• Charging Controller: 3-Stage with Equalization
• Grid to Battery Charging Efficiency: 96.0%
• External Battery Temperature Sensor (BTS): Included
• Automatic Generator Start (AGS): 2 Wire Start – Integrated
• BMS Communication: CANBus & RS485 MODBUS

General Data

• Dimensions (H x W x D): 807 x 494 x 306 mm (31.8 x 19.4 x 12 in)
• Weight: 61.2 Kg / 135 lb.
• Enclosure: IP65 / NEMA 3R
• Ambient Temperature: -25~55°C, > 45°C Derating
• Noise: < 30 dB @ 25°C (77°F)
• Idle consumption: – No Load 90W
• Communication and Monitoring: Wi-Fi & LAN Hardware Included
• Standard Warranty: 10 Years

Protection and Certifications

• Certifications and Listings: UL1741-2010/2018, IEEE1547a 2003/2014, FCC 15 Class B, UL1741SB, CA Rule 21, HECO Rule 14H
• PV DC Disconnect Switch — NEC 240.15: Integrated
• Ground Fault Detection — NEC 690.5: Integrated
• PV Rapid Shutdown Control — NEC 690.12: Integrated
• PV Arc Fault Detection — NEC 690.11: Integrated
• PV Input Lightning Protection: Integrated
• PV String Input Reverse Polarity Protection: Integrated
• AC Output Breaker – 63A: Integrated
• 250A Battery Breaker / Disconnect: Integrated
• Surge Protection: DC Type II / AC Type II

Warranty and Reliability

Comes with our award winning iron clad warranty and our 7 day a week live Engineering Support to assist you in all your needs.

What’s in The Box

• 1 x SOL-ARK 15K-2P Hybrid Inverter

User Manual

• SOL-ARK 15K-2P Hybrid Inverter User Manual
• SOL-ARK 15K-2P Hybrid Inverter Certification
• SOL-ARK 15K-2P Hybrid Inverter Spec Sheet
• SOL-ARK 15K-2P HYBRID INVERTER Emp Test
• SOL-ARK 15K-2P Hybrid Inverter Brochure
